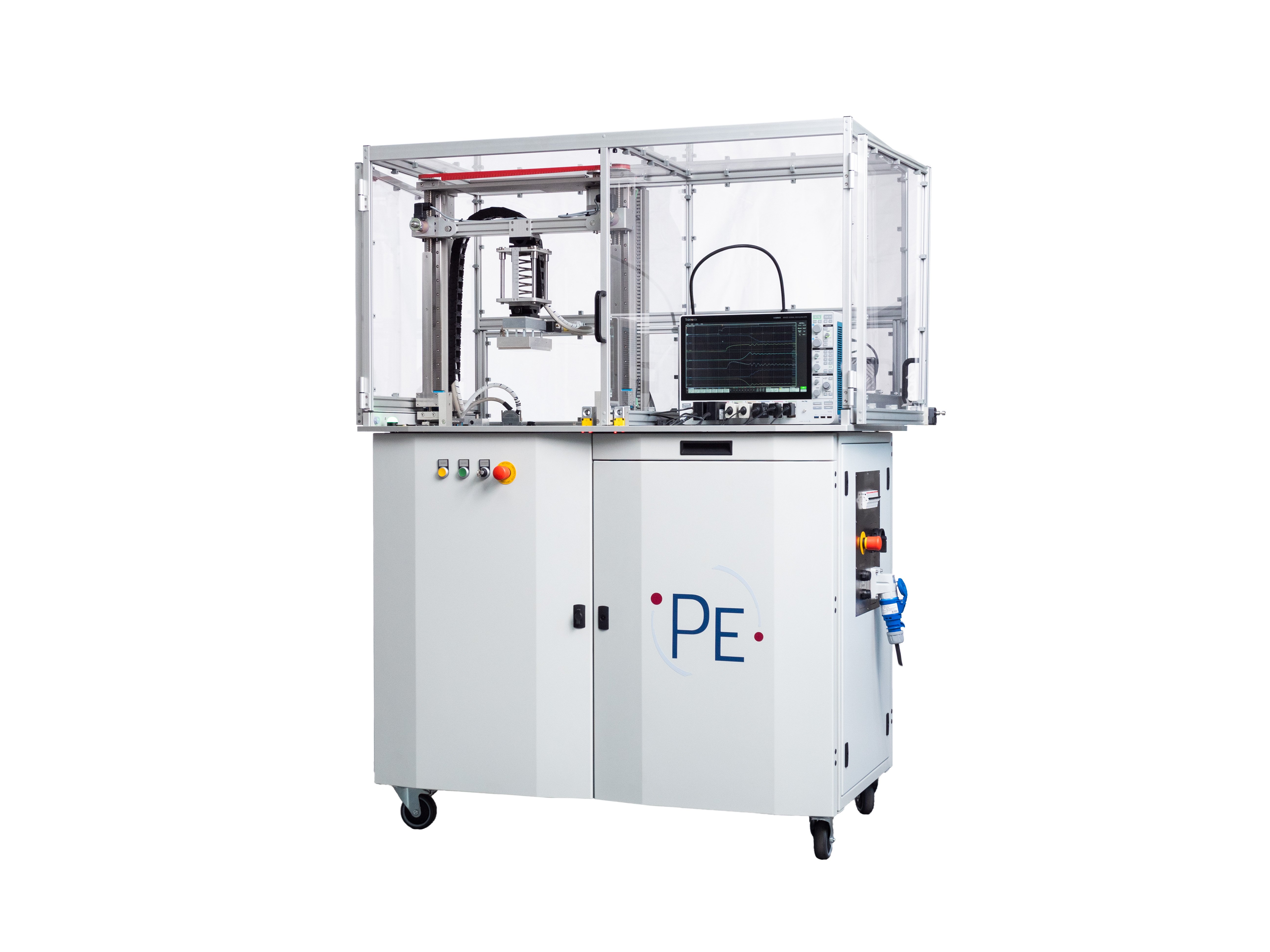

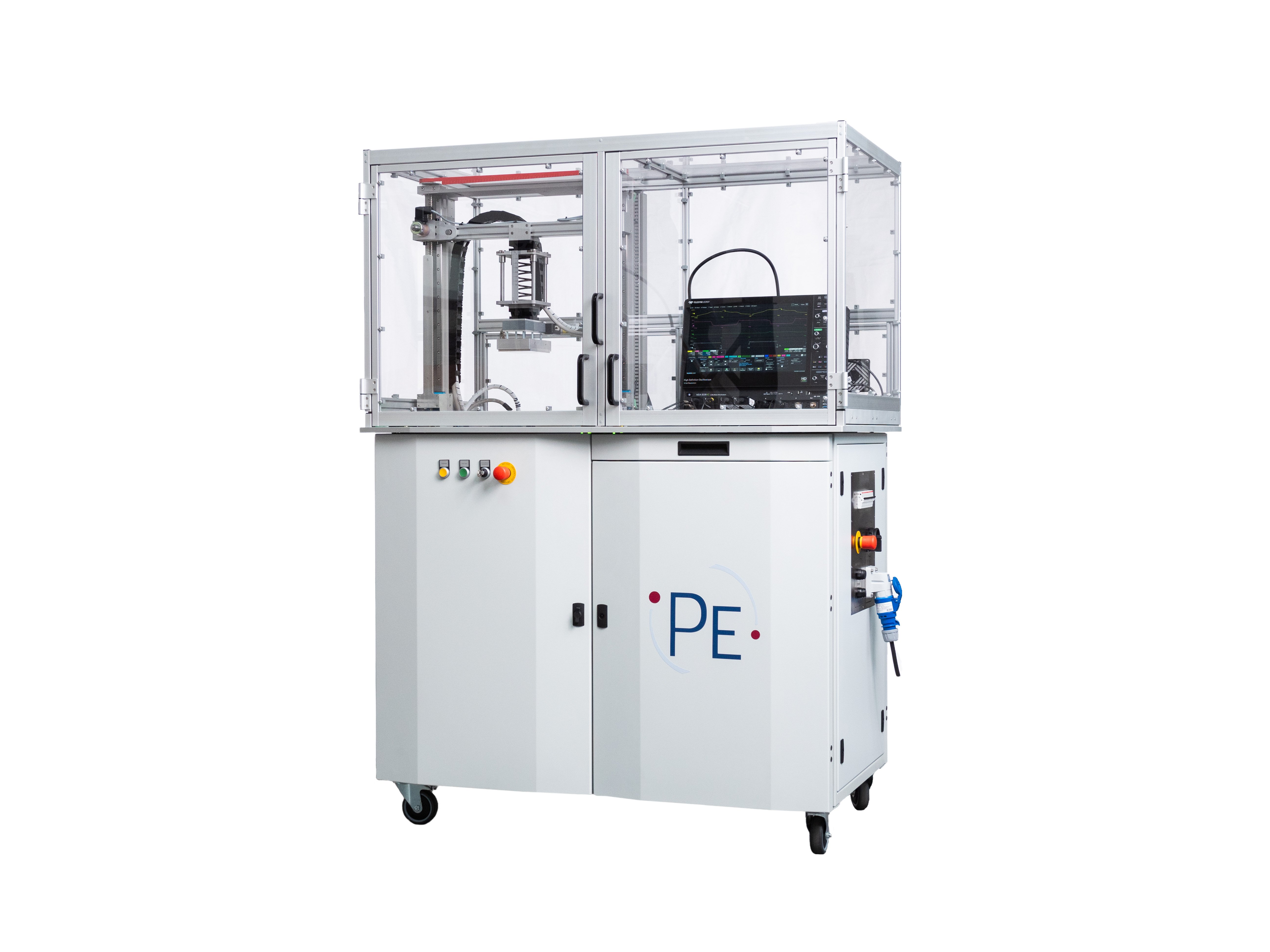

Automated Double-Pulse Tester

  • Automated Fully automated Double-Pulse Test System
  • Flexible Measurements on all packages (discretes, modules) and systems
  • Efficient Fast setup time
  • Compatible Works with test and measurement equipment of multiple vendors

One Tester for many Applications


Device Characterization

  • Discretes and power modules
  • SiC, GaN & Si
  • Optimized switching cell
  • Minimal stray inductance
  • Fast, reliable & trustworthy

Driver Optimization

  • Automatic search for gate parameters
  • Programmable gate drivers
  • Variable gate resistors
  • Adaptable gate voltages
  • Short circuit test
More ...

System Verification

  • Testing close to application
  • Complete power stage testing
  • Flexible and ergonomic workbench
  • Reproducible results

Modular Doubel-Pulse Tester


Features

  • Test voltage up to 2 kV (higher voltage on request)
  • Test current up to 3.6 kA

  • Test temperature 25°C to 250 °C / -55°C to 250°C with ThermoStream

  • Optimized test fixtures for all packages

  • Universal gate drivers

  • Different load inductors and DC-links

  • Very low stray inductance

  • High performance scopes and probes

Benefits

  • Modules, discretes, silicon, SiC and GaN – one tester for all devices
  • Fast setup times
  • Avoidance of human errors through error-detecting software
  • Fast amortization due to reduction of required human resources
  • Use of existing infrastructure (compatibility)
